Main System Composition of Automatic Autoclave

Automatic autoclave ( also called composite autoclave) is used for metal/non-metal adhesive components and resin based high strength glass fiber, carbon fiber, boron fiber, arylon fiber and other composite materials, such as aircraft doors, fairing, airborne radome, bracket, wing, tail, etc. The automatic autoclave is a set of system equipment, it can realize the sequential and real-time control of process parameters such as temperature, pressure, vacuum, cooling and circulation.

Main Subsystems of Automatic Autoclave

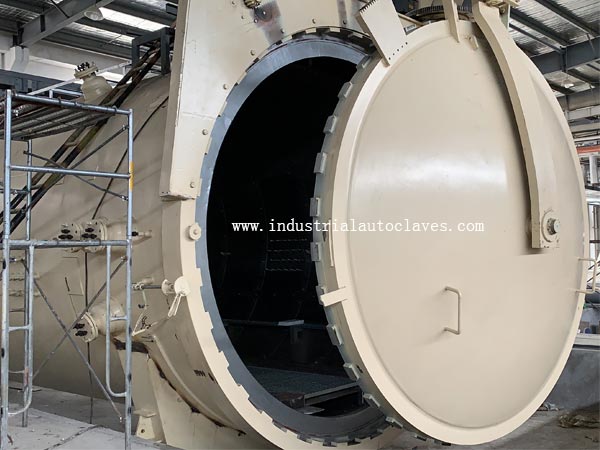

• Tank Body: High pressure and high temperature, with tank body, tank door mechanism, high temperature motor, wind tunnel plate thermal insulation layer, etc.
• Safety Interlock Device: High – voltage automatic interlock, manual interlock, high – voltage alarm device.
• Quick Opening Device: Manual and electric dual-purpose quick opening design, it can normally open and close the tank door in case of power failure.
• Tank Door Sealing Device: Tank door using silicone inflatable sealing, high pressure 400℃, no wear.
• Pressure System: Pressure transmission and control system, with compressor, gas storage tank, pressure control valve, pipeline, pressure transmitter and pressure gauge.
• Heating System: In the automatic autoclave forming process, the far infrared quartz electric heat pipe as the heating source, the fluid medium (generally air under low temperature condition, inert gas under high temperature condition) as the heat transfer carrier, and the fan as the forced gas circulation power to complete the process of the circular heating of the molding tool. In the cooling stage, the cooling process of the tooling is realized by circulating water to remove heat.
• Temperature Circulating System: With circulating fan, air guide plate and guide cover to accelerate heat conduction and circulation, forming uniform temperature field.
• Vacuum System: It consists of vacuum pump, pipeline, vacuum meter and vacuum valve, providing vacuum conditions for encapsulated composite prefabricated parts.
• Automatic Control System of Automatic Autoclave: It adopt Siemens PLC control system, to realize the pressure, temperature, cooling and other process parameters of the full precision control and real-time recording.
