High Pressure Vessel is a kind of pressure vessel, which is the large, heavy weight and quick opening pressure vessels used to process materials or parts which require exposure to elevated pressure and temperature. High Pressure Vessel is often made with carbon steel, stainless steel and other alloy steel. Our high pressure vessel is designed to test the use of objects under 2000 meters in the deep sea environment. The pressure of it is up to 200 bar,which is designed to simulate the pressure of 2000 meters in the deep sea and is a typical product of ASME U stamp.
Our American customer sent us the inquiry for high pressure vessel in May 2018. According to the customer’s request, we drew the drawings and asked the third party to do the stress analysis. The program was revised several times, and finally we signed the contract of it at the end of November. The manufacturing period is three months. In January 2019, representatives of US customers in Singapore branch came to our factory for on-site acceptance, witnessing the operation of hydraulic test and PLC control system of high pressure vessel. We passed the acceptance and have discussed the next order successfully, and after the product is shipped and installed successfully, the customer will purchase a second high pressure vessel.

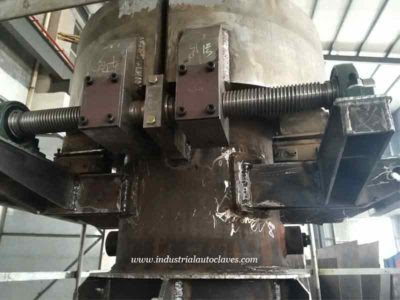

The high pressure vessel is a split clamp structure, which opens the pressure vessel quickly and opens and closes through the drive screw.
Specifications of High Pressure Vessel
Equipment specifications: DIN 610x1500 mm
Media: Water
Operating pressure : 18 Mpa(G)
Design pressure : 20 Mpa(G)
Operating temperature : 100°C
Design temperature : 115 °C
Minimum design metal temperature MDMT: 0°C
DESIGN CYCLES NUMBER: 0~15.2 Mpa 200per5min
Design life: 20YEAR @ 4000000 cycles
Pipe safety valve opening pressure.: 18.5Mpa(G)
About Control System of High Pressure Vessel
The system is designed and manufactured on the basis of other similar products. It is simple, reliable, easy to operate and maintain. Taiwanese Yonghong Programmable Controller is selected as the control core; Huichuan’s high performance servo drive system is used to exchange data through serial communication mode and master controller, which is easy to operate and maintain; the operation is safe and convenient; the display adopts Kunlun’s programmable touch screen, and the overall performance of the system is stable and reliable.
Composition and Working Principle of Electronic Control System
The electric control system of 610 high pressure vessel is driven by two 1.3KW servo motors to drive the lead screw and clamp so as to complete the action of opening and closing the door.
The main controller consists of the following parts: switching power supply, relay, PLC, analog module and temperature module.
There are three switching power supply, one of which provides DC 24V power supply. PLC, analog module, relay, display screen and so on use DC 24V power supply. The other two switching power supply are two electric push rods respectively.
About STRENGTH Equipments
Taian STRENGTH Equipments Co., Ltd is the professional pressure vessel designer, manufacturer and exporter dedicated in supplying finest quality industrial autoclave, storage tank and dish head products and solutions to worldwide customer over 20 years. We have over 80 talented research and development experts, 2 million square meters manufacturing factory and more than 50 sets large-scale manufacturing machines. Our annual industrial autoclave and storage tank output can reach over 300 sets, dished head output can reach over 3000 sets.
STRENGTH Equipments is not only manufacturing high quality industrial autoclaves, storage tanks and dished ends but also providing custom product design, fabrication and after-sale service. ODM, OEM are also available. If you have any questions or inquiries, please fill and submit the following form, we will reply as soon as possible.
